 COMPLETE REPLACEMENT

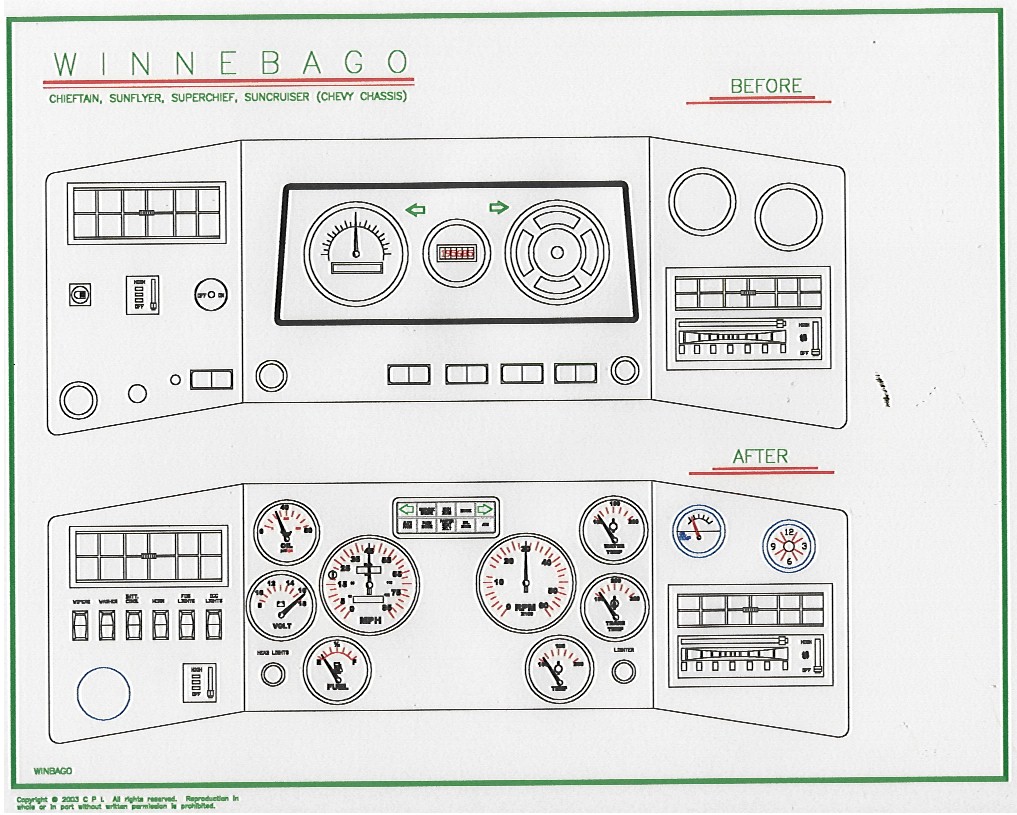

winnebago full replacement.jpg (231217 bytes) winniebago_complete_replacement.jpg (16903 bytes) winnebago_original.jpg (25876 bytes)

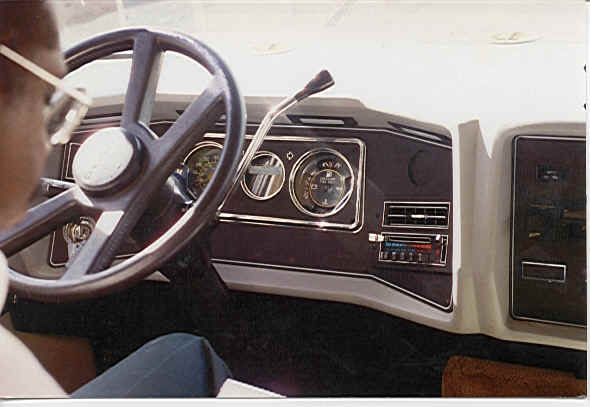

1979-1990   CIP COMPLETE REPLACEMENT   WINNEBAGO ORIGINAL

MECHANICAL PANEL

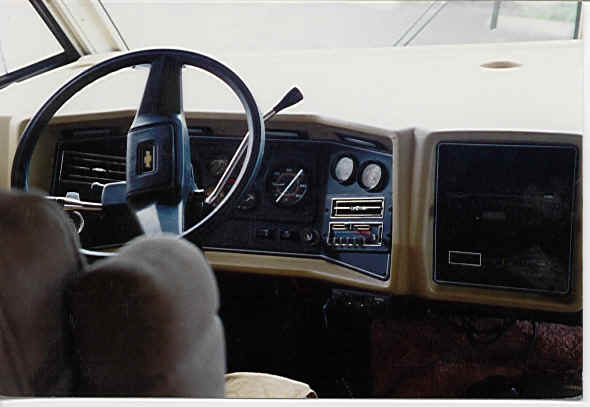

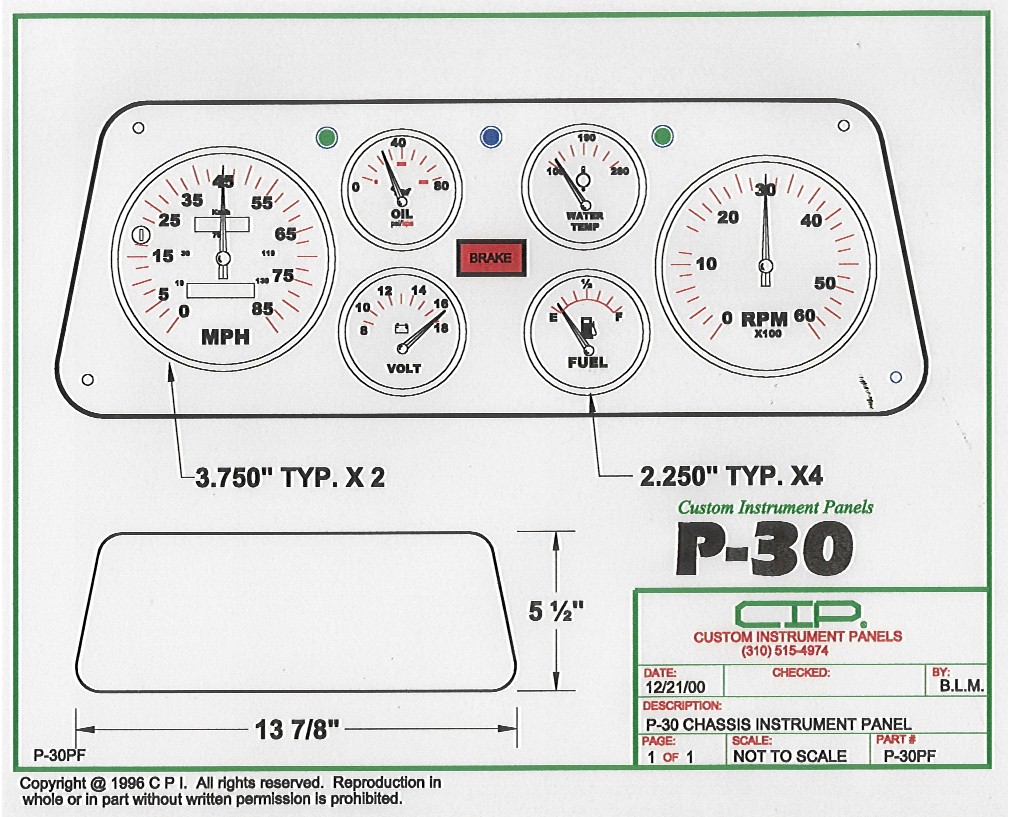

CIP P-30M  CIP P-30M  LAYOUT  CIP P30M INSTALLED

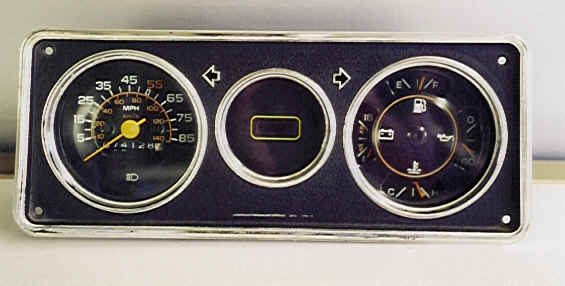

 OLD P-30
HARDWARE PANELS GAUGES
Panel mounting screws Gauge Panel Speedometer   with Trip Odometer
  Engrave control switches, warning lights and turn signals Tachometer
    Fuel Gauge ( sending unit 90 ohm resistance)
    Voltmeter-12 Volt Engine Battery
    Oil Pressure Gauge & 80 psi Sending Unit
    Transmission . Gauge & Sending Unit (complete replacement only)
    Water Temp. Gauge & Sender
    Oil Temp & Sender (complete replacement only)
    Clock (complete replacement only)
    Voltmeter House Battery (complete replacement only)

 GRAND TOTAL..............................................................................569.50

Prices effective January 1, 2016. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.



ELANDAN- Windcruiser, Chieftan, Super Chiftan 10 Gauge System

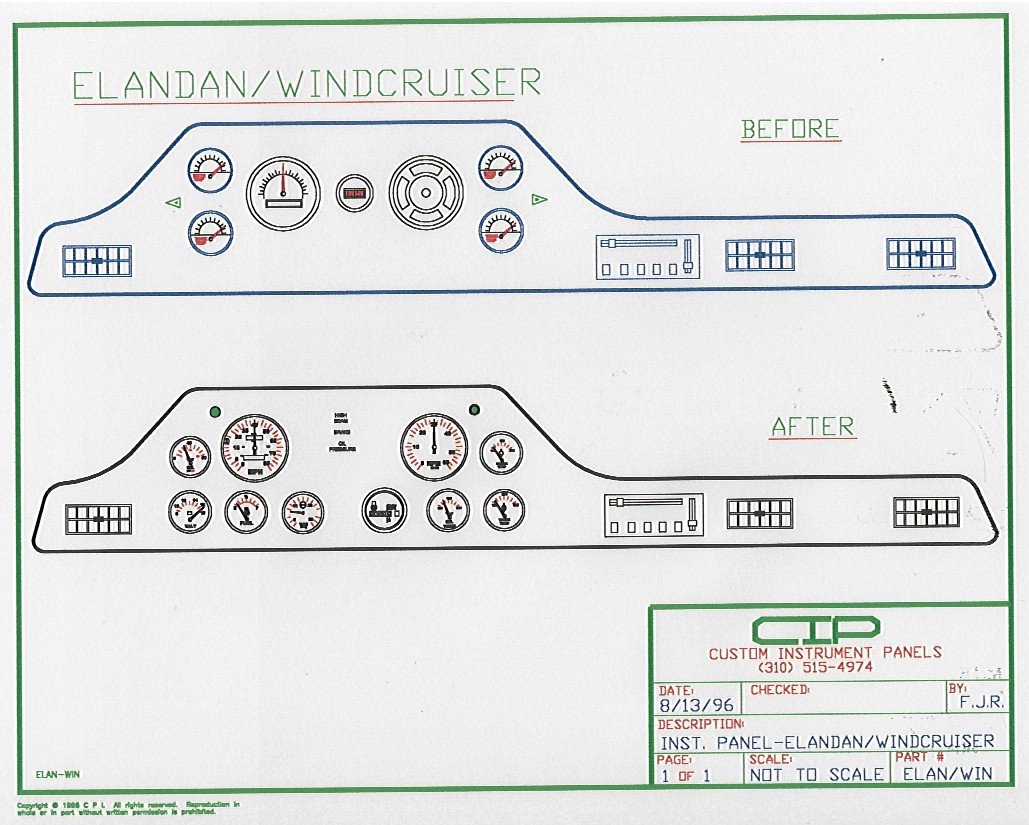

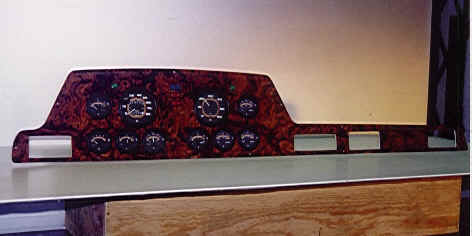

Winnebago old and CIP.jpg (215353 bytes) winnebago_elandon.jpg (12705 bytes) elandan_repair_final.jpg (34263 bytes)
LAYOUT  CIP COMPLETE REPLACEMENT   CIP ELANDAN INSTALLED
Winnebago CIP Complete.jpg (204874 bytes) Small switch panel on left without switches with engraved and backlighting........$109.75

Large switch Panel on the right without switches with engraving &  backlighting.......$185.10

(switches are an additional charge).

Main Instrument Panel blank with engraving and warning lights............................$275.00




Switch Panels right & left
HARDWARE PANELS GAUGES
Panel mounting screws Gauge Panel Speedometer   with Trip Odometer
  Tell-Tale warning lights.  Turn signals, high beam, brake & low oil pressure lights. Tachometer
    Fuel Gauge ( sending unit 90 ohm resistance)
    Voltmeter-12 Volt Engine Battery
    Oil Pressure Gauge & 80 psi Sending Unit
    Transmission . Gauge & Sending Unit (complete replacement only)
    Water Temp. Gauge & Sender
    Oil Temp & Sender (complete replacement only)
    Vacuum Gauge
    Hour Meter

GRAND TOTAL (with Mechanical Speedometer).................................................$1,073.15

GRAND TOTAL ( with Electric Speedometer $1,183.25

(Premier White Face Gauges is an additional $95.00 for 10 gauge system)

Prices effective January 1, 2021. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

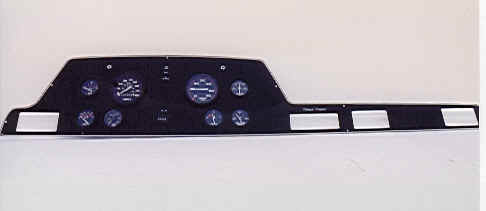

ELANDAN - WINDCRUISER   DIGITAL   REPLACEMENT PANEL

winnebago elec org.jpg (136714 bytes)


WINNEBAGO  ORIGINAL CIP REPLACEMENT CIP REPLACEMENT LAYOUT
HARDWARE PANELS GAUGES
Panel mounting screws Gauge Panel Speedometer   with Trip Odometer (mechanical cable required)
  Engrave control switches, warning lights and turn signals Tachometer
    Fuel Gauge ( sending unit 90 ohm resistance)
    Voltmeter-12 Volt Engine Battery
    Oil Pressure Gauge & 80 psi Sending Unit
    Transmission Temp. Gauge & Sending Unit (complete replacement only)
    Water Temp. Gauge & Sender
    Oil Temp  or acuum Gauge

GRAND TOTAL (with mechanical  speedometer).................................................$979.25

Cable extra............................$95.49

GRAND TOTAL (with Electric Speedometer)...............................$1,069.15

Prices effective January 1, 2021. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.



INSTALLATION OF NEW PANEL

(Preparing the coach dash for new panel)

CUTTING THE HOUSING

1.  Instrument Panel housing must be cut for the new panel.

      A. Metal side braces must be cut (see diagram)

      B. Each side should be cut 2 1/2" deep and 6" high in the front and tapered down to 5"

           high in the back starting at the bottom of the cut up.

      C. After the metal has been cut, you now have to cut the front vacuum formed tan

           part of the dash  between the 2 mounting screw holes. Cut about 1/2" (see diagram).

NOTE: Be sure to cut around the mounting screw holes. You will need them to mount your new Instrument panel.


Click on drawing to view larger size
