Our MCI gauge panel now comes with our new warning light bar. See layouts below,

or see our Accessories page for more detail.

Some of our customers have used our dash systems to customize there coaches check out some pictures at the bottom of this page under "Other Ideas"

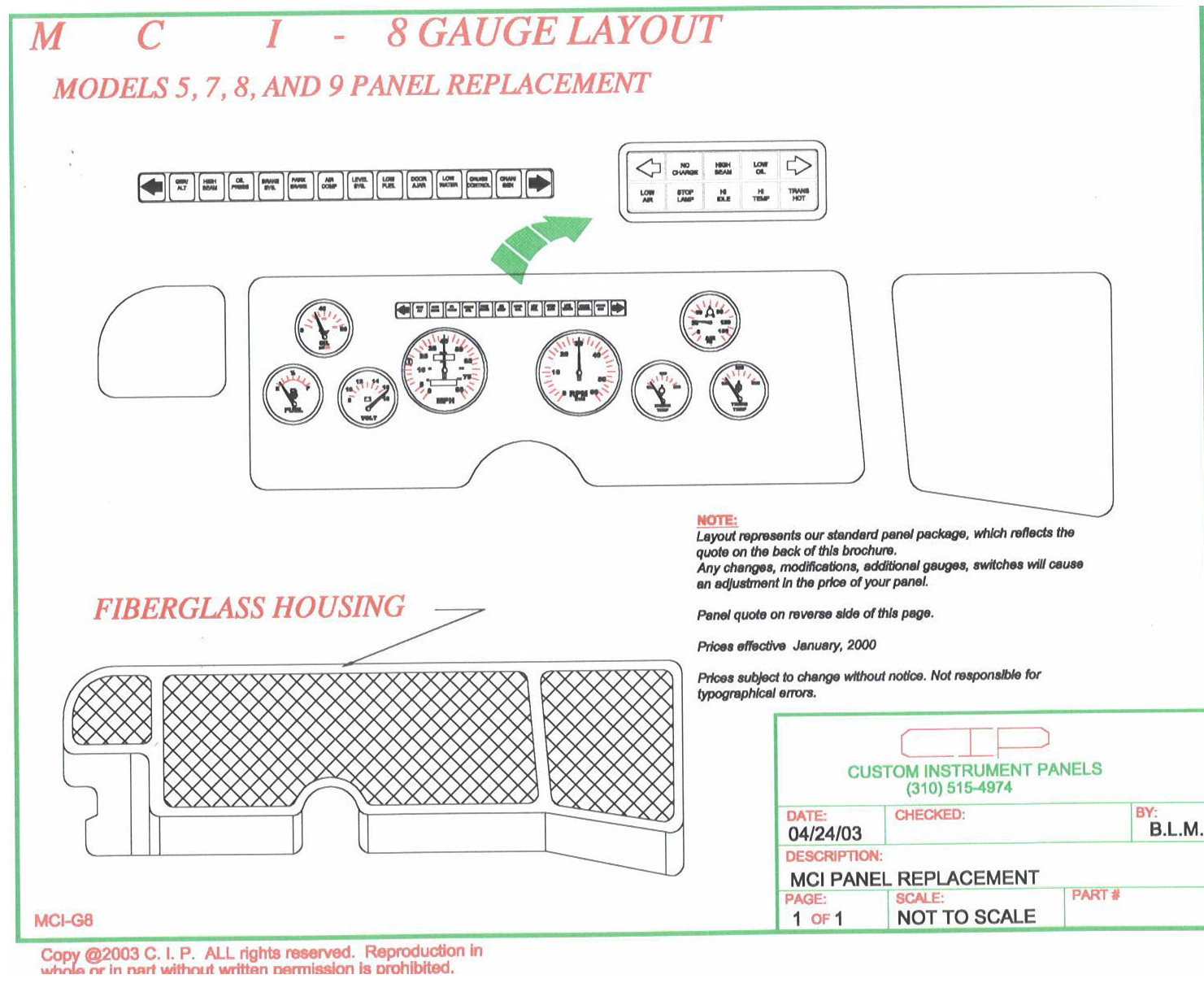

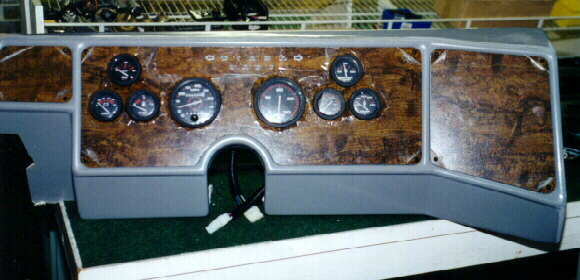

8-GAUGE DASH SYSTEM-24 VOLT

MCI 8 GAUGE.jpg (305315 bytes) MCI HOUSING.jpg (140093 bytes) mci-3.jpg (217172 bytes)
8-GAUGE LAYOUT MCI HOUSING DIMENSIONS  MCI 8-GAUGE SYSTEM
Models
Hardware Fiberglass housing with brackets Panel mounting screws
Panels Gauge Panel Switch Panel*  Back-up Monitor Panel*
Gauges
Pressure Oil Pressure Single or  Dual Air Pressure
Temperature Transmission  Temp. Water Temp.
Performance Fuel  Voltmeter-24 Volt
Control Speedometer Tachometer

 * Blank Panel accessories are not included. ( see accessories page)

   Sending Units Included

   Housing alone Price $395.00

Premier White face gauges is an additional $75.00

GRAND TOTAL..............................................................................................$1,284.66

Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

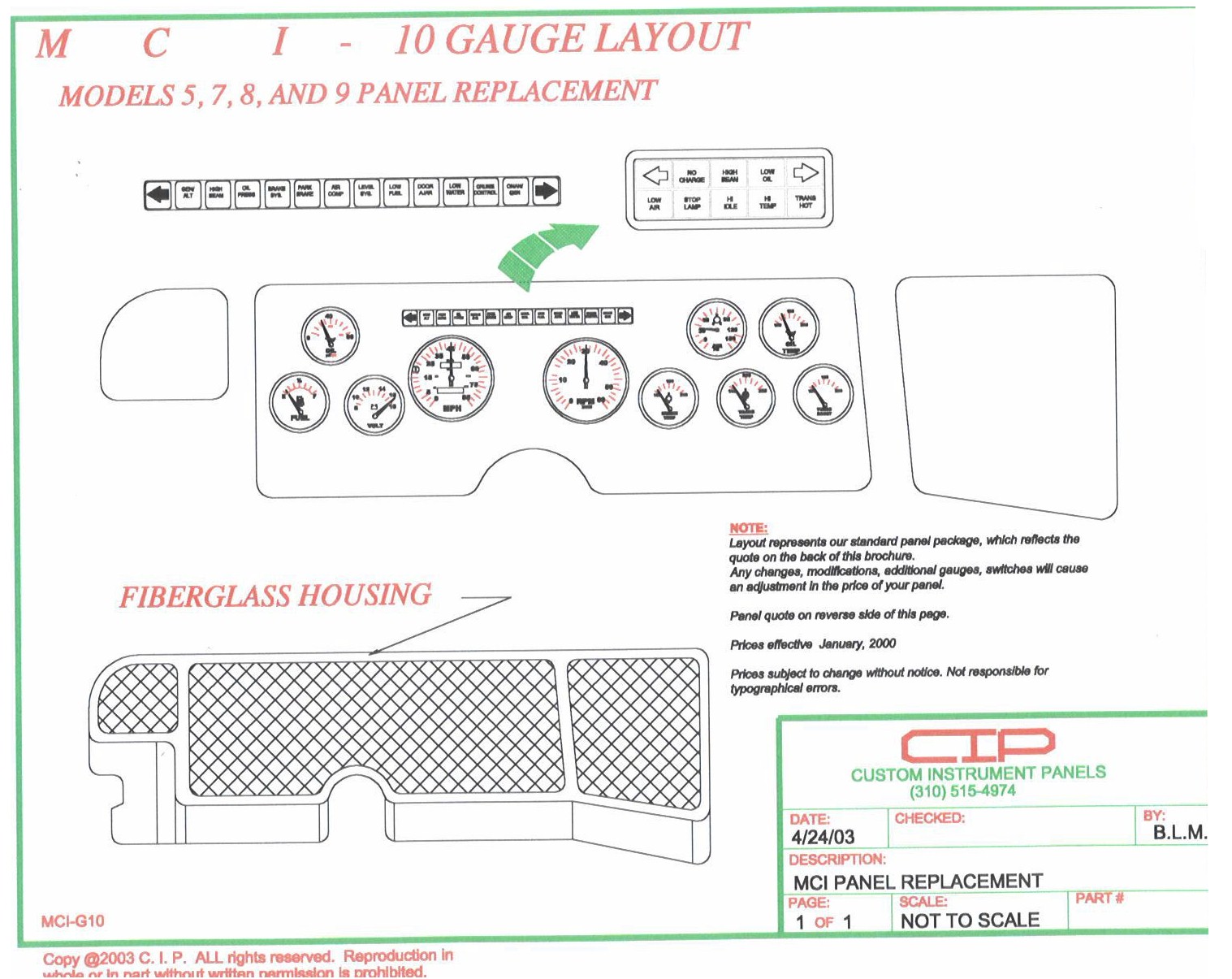

MCI 10 GAUGE LAYOUT

MCI 10 GAUGE.jpg (308747 bytes) MCI HOUSING.jpg (140093 bytes)

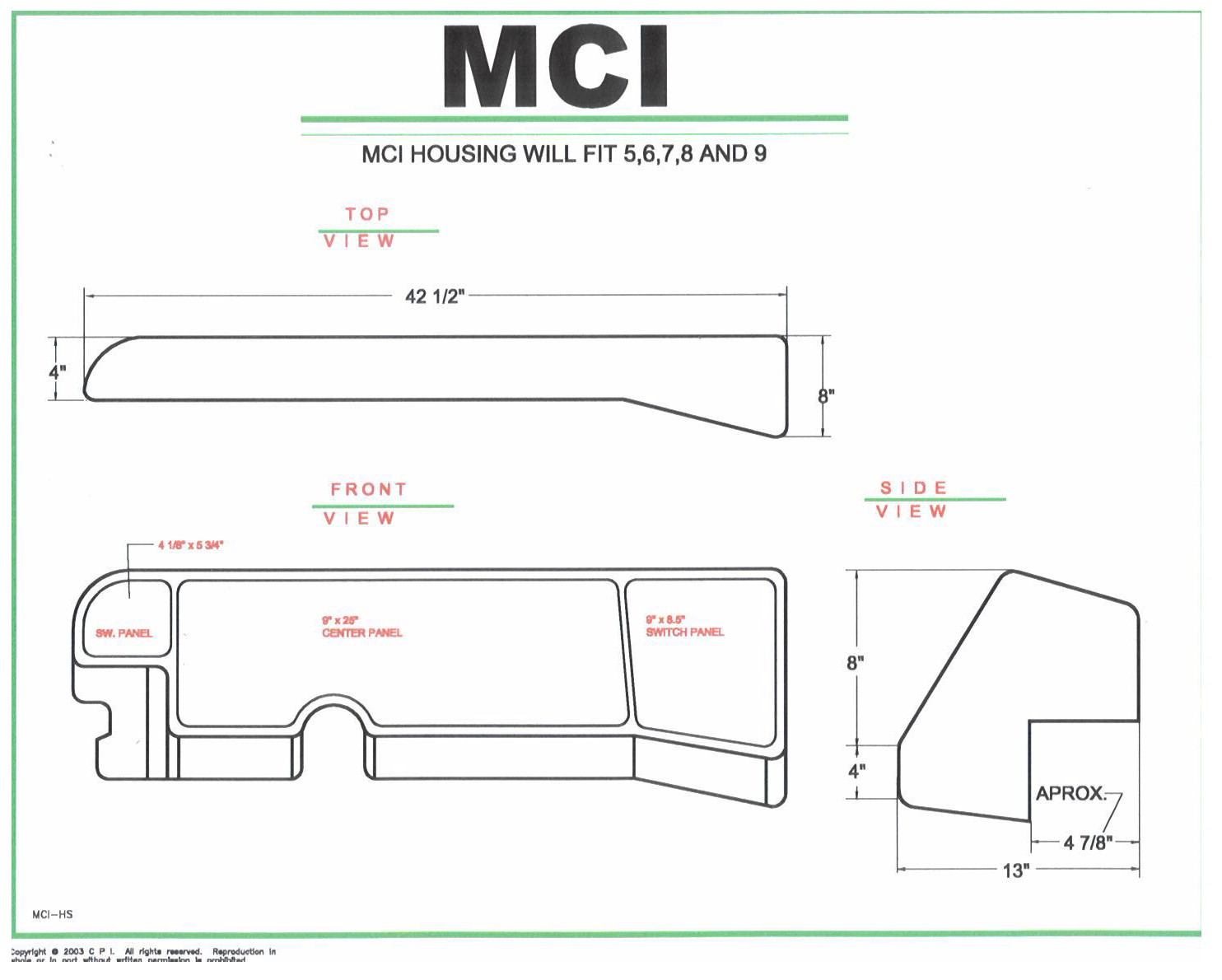

MCI 10 GAUGE MCI HOUSING DIMENSIONS
Models
Hardware Fiberglass housing with brackets Panel mounting screws
Panels Gauge Panel Switch Panel*  Back-up Monitor Panel*
Gauges
Pressure Oil Pressure Single or  Dual Air Pressure             Turbo Boost
Temperature Transmission  Temp. Water Temp. Oil Temp.
Performance Fuel Voltmeter-24 Volt
Control Speedometer Tachometer

 * Blank Panel accessories are not included. ( see accessories page)

   Sending Units Included

    Housing alone Price $395.00

Premier White face gauges is an additional $95.00



GRAND TOTAL..............................................................................................$1,335.79

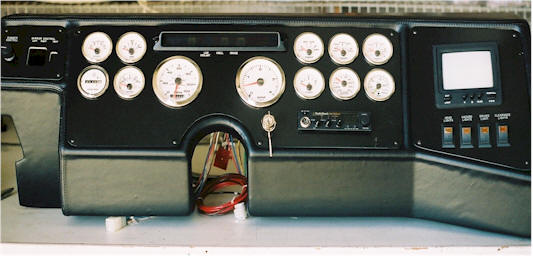

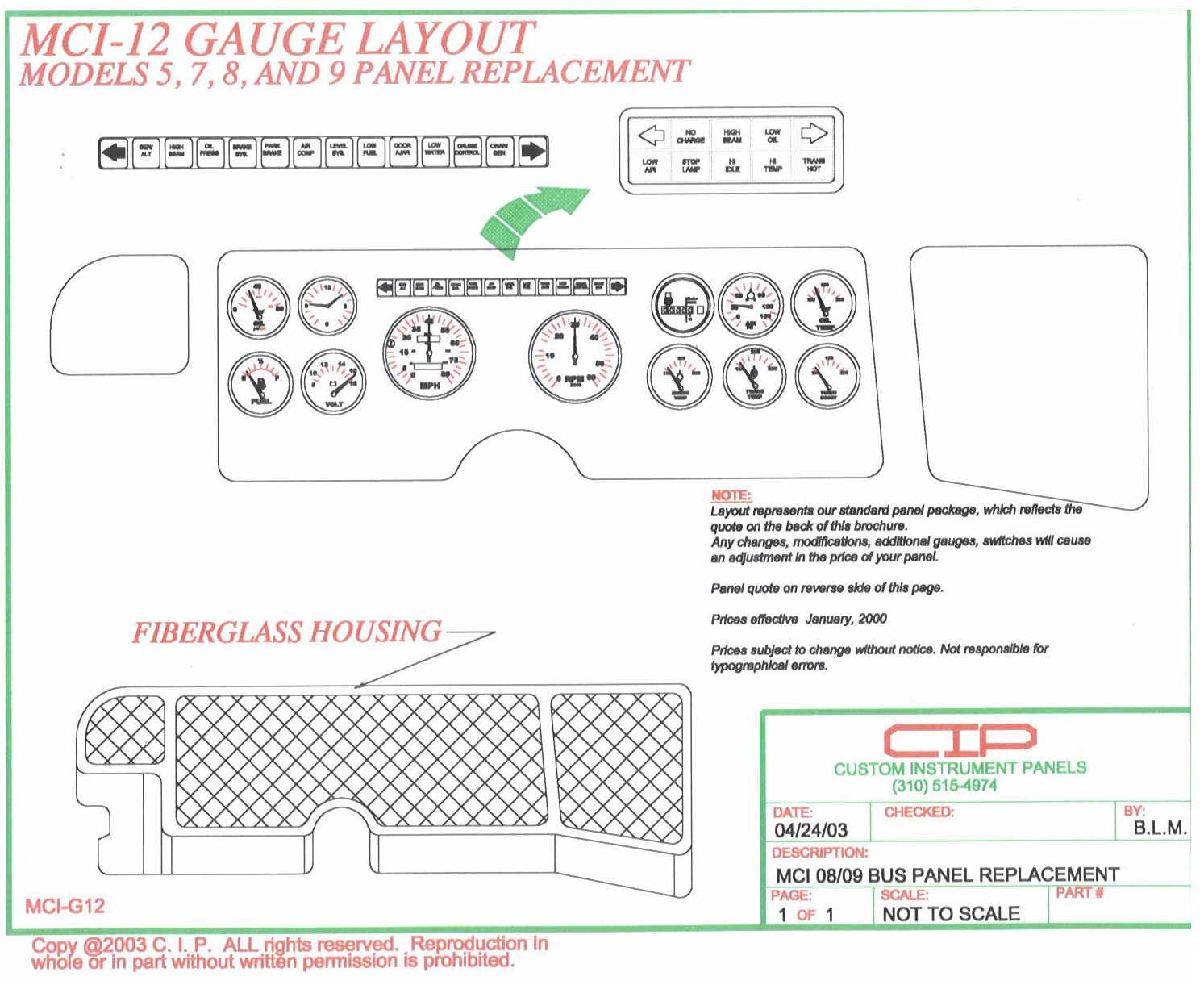

12-GAUGE DASH SYSTEM-24 VOLT

MCI 12 GAUGE.jpg (334044 bytes) MCI HOUSING.jpg (140093 bytes)

MCI 12 GAUGE

MCI HOUSING DIMENSIONS

MCI 12 GAUGE LAYOUT

Model
Hardware Fiberglass housing with brackets Panel mounting screws
Panels Gauge Panel Switch Panel*   Back-up Monitor Panel*
Gauges
Pressure Oil Pressure Single or  Dual Air Pressure             Turbo Boost
Temperature Transmission  Temp. Water Temp. Oil Temp.
Performance Fuel Voltmeter-24 Volt Hour meter
Control Speedometer Tachometer Clock

GRAND TOTAL...................................................................................$1,437.33

Click on pictures to enlarge them.



Housing alone Price $395.00

Premier White face gauges is an additional $125.00

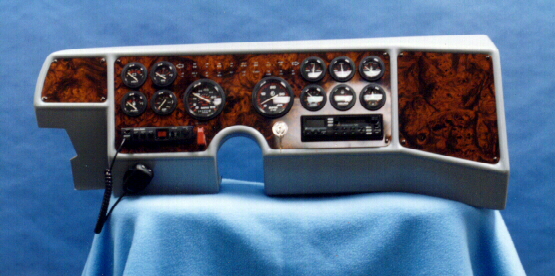

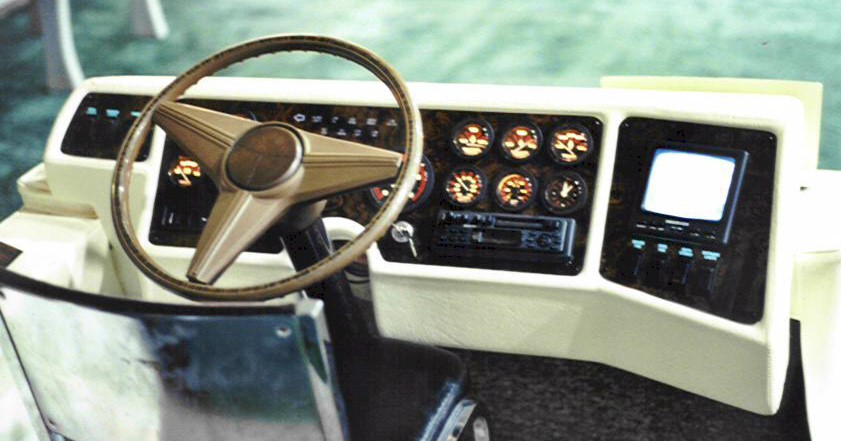

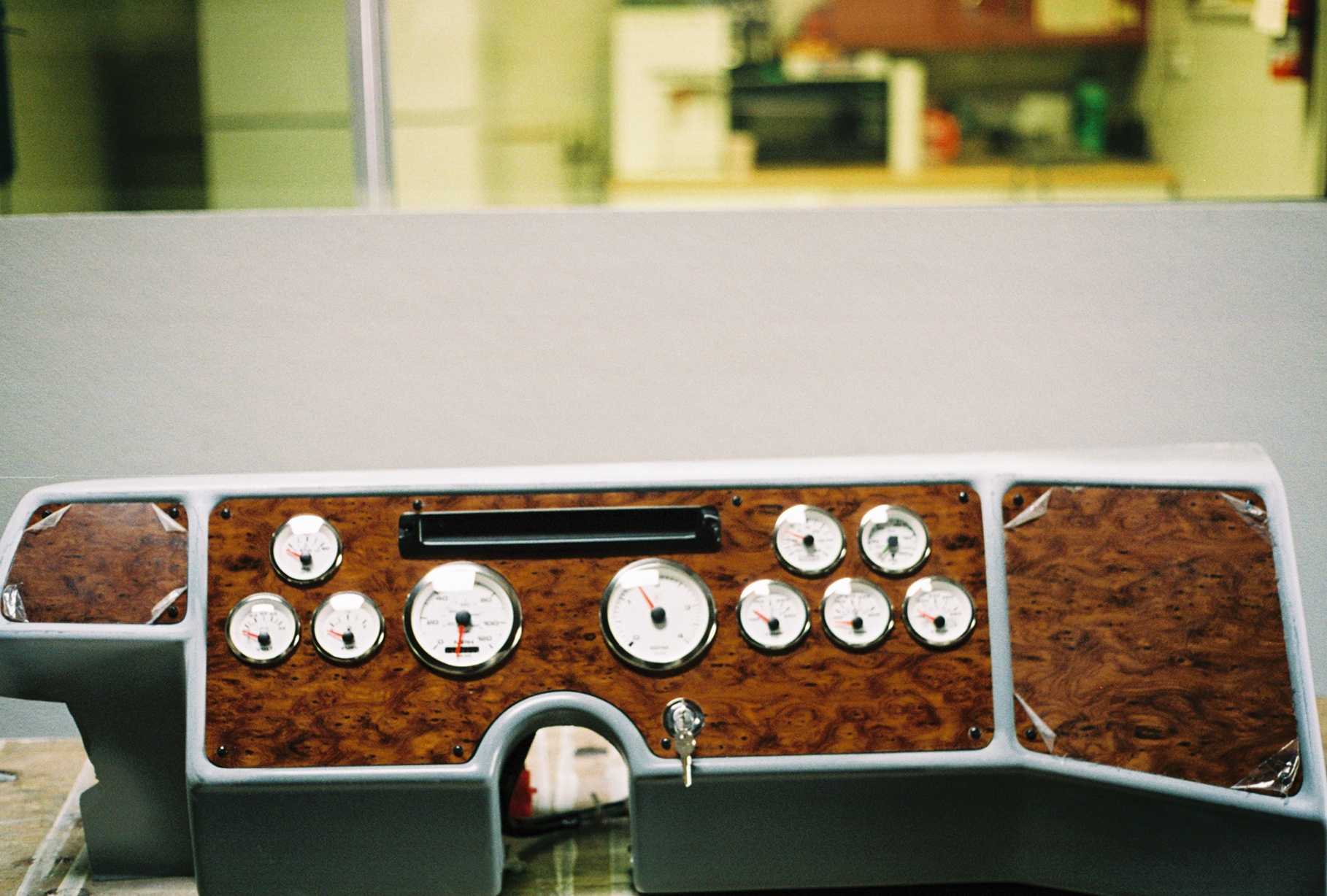

MCI 10 GAUGE COMPLETE SYSTEM

MCI 12 GAUGE DELUXE.jpg (356366 bytes) MCI HOUSING.jpg (140093 bytes) Copy of MCI 12 Gauge Picture.gif (121136 bytes)

MCI 12 GAUGE DELUXE

MCI HOUSING DIMENSIONS

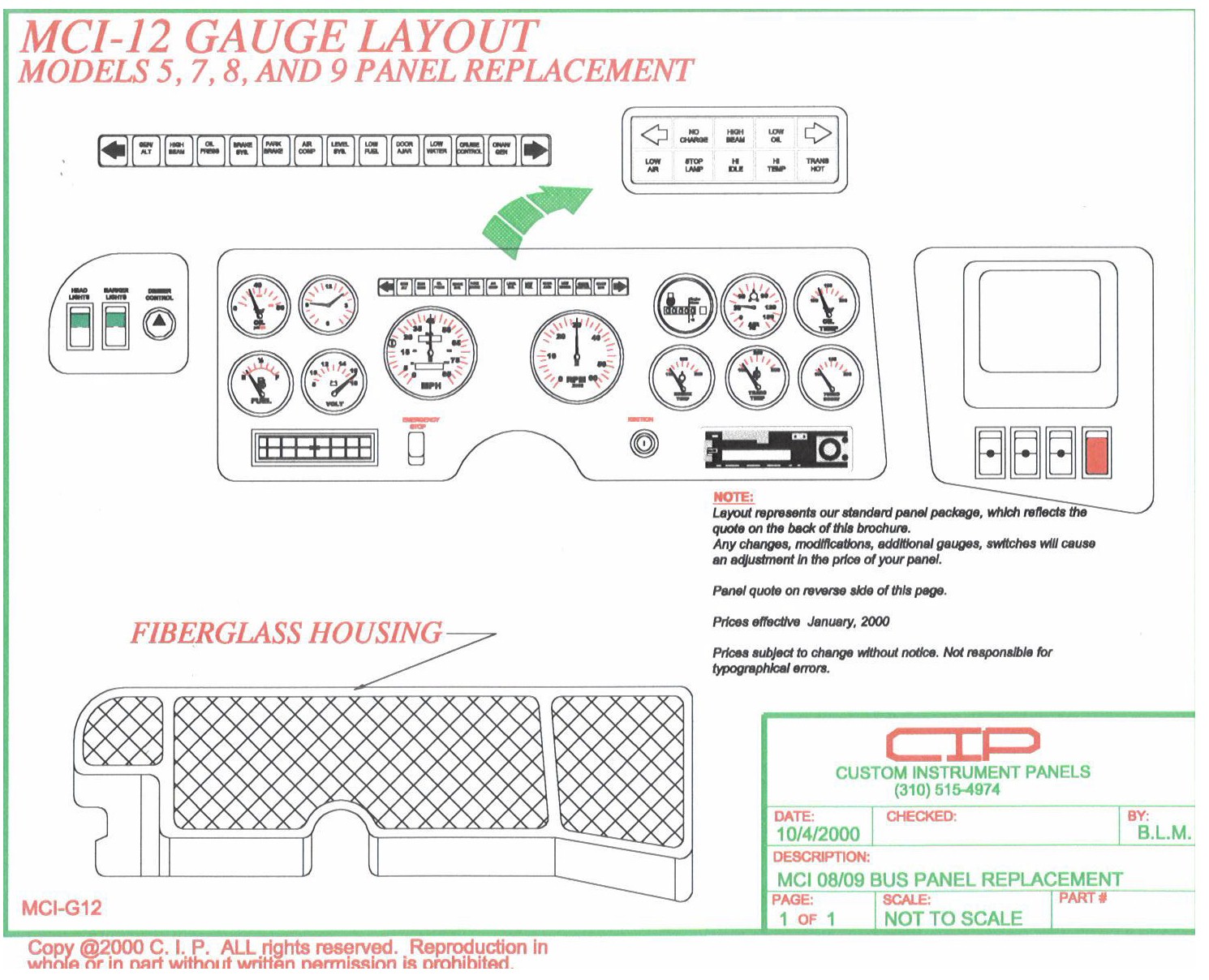

MCI 12 GAUGE DELUXE LAYOUT

Models
Hardware One vinyl covered fiberglass housing Mounting Bracket and Screws
Panels Gauge Panel Switch Panel Back-up Monitor Panel
Gauges
Pressure Oil Pressure Single or  Dual Air Pressure             Turbo Boost
Temperature Transmission  Temp. Water Temp. Oil Temp.
Performance Fuel*  Voltmeter-24 Volt
Control Speedometer Tachometer
Accessories 5" Back-up Monitor with camera Radio with CD player
8- switches Key Ignition switch

GRAND TOTAL...............................................................................................................$2,869.22

Premier White face Gauges is an additional $125.00.

NOTE: 24volt systems add $50.00 to the cost of your panel system

* Sending Unit Included

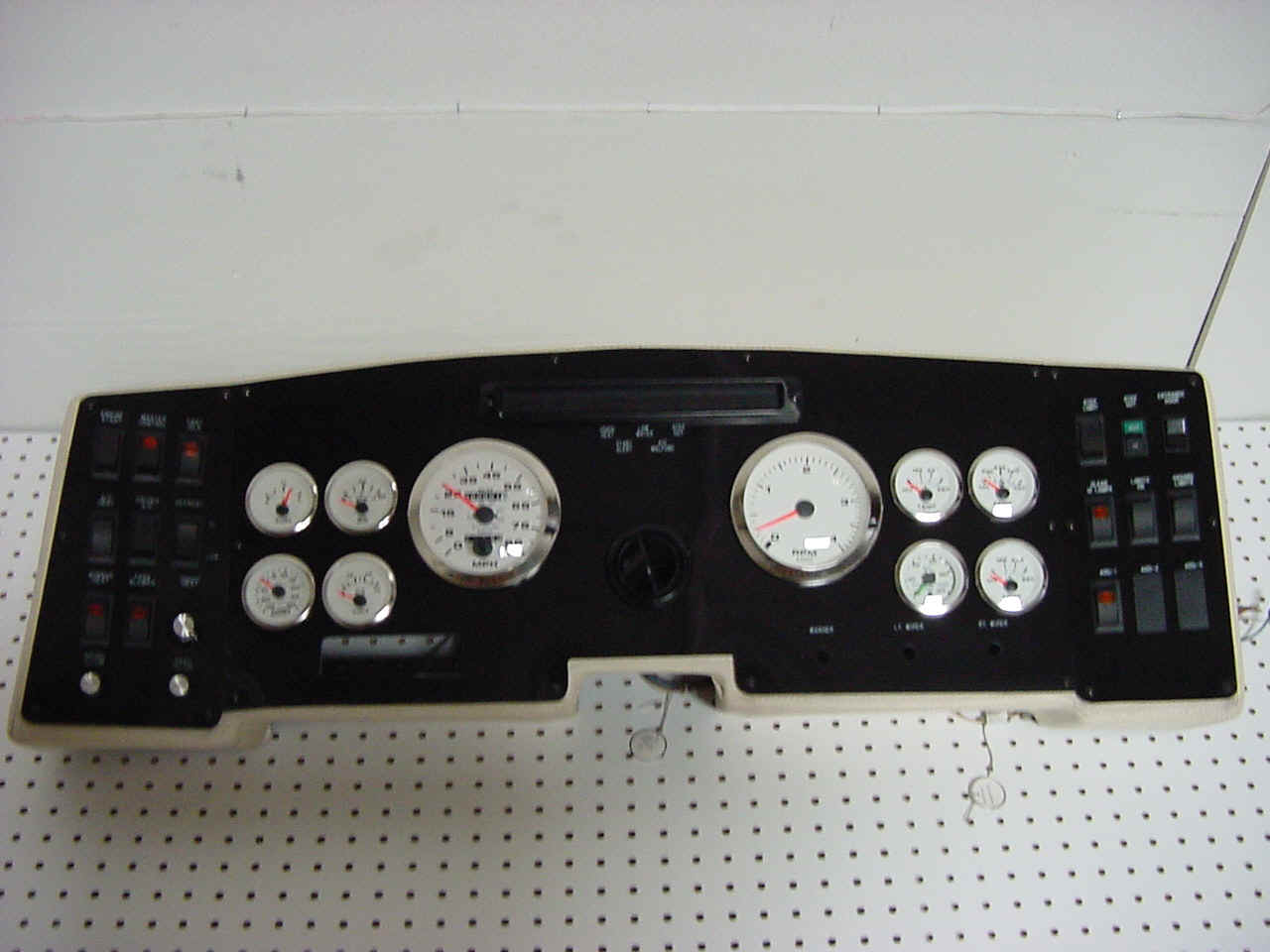

MCI 10 GAUGE SYSYTEM


MCI 96A HOUSING

MCI 96A HOUSING DIMENSIONS

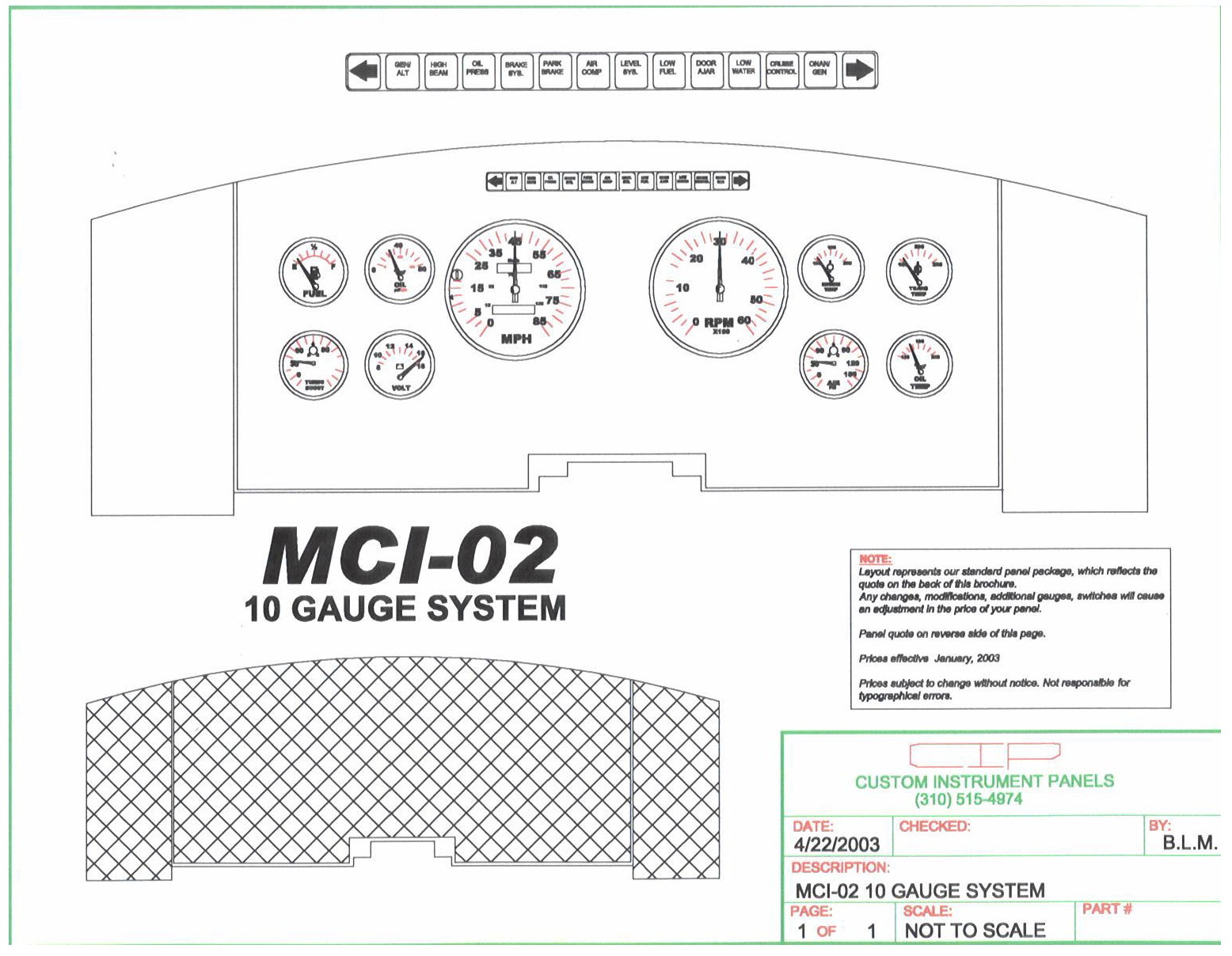

MCI 10 GAUGE  LAYOUT

Models
Hardware Fiberglass housing with brackets Panel mounting screws
Panels Gauge Panel Switch Panel Left*  Switch Panel Right*
Gauges
Pressure Oil Pressure Single or  Dual Air Pressure             Turbo Boost
Temperature Transmission  Temp. Water Temp. Oil Temp.
Performance Fuel Voltmeter-24 Volt
Control Speedometer Tachometer

GRAND TOTAL MCI 102 or 96A (10 Gauge System).................................$1,327.00

(Premier White Face Gauges is an additional $95.00 for 10 gauge system)

GRAND TOTAL MCI 102 OR 96A (8 Gauge System).................................$1,219.00

(Premier White Face Gauges is an additional $75.00 for 8 gauge system)



Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

The Panel featured above is just an idea of what can be done. We can arrange the panel the way you want it. Our Prices include complete panel packages or you can buy the panels, housing and gauges separately.

The MCI Panel is available with warning lights, and the following gauges:

         Also available with   24 volt lighting only. Prices are dependent upon your selection of the above items, some are optional and are not standard on our panels. Key switch and other engraved switches, radios, CB, & back-up camera and monitor are available at an extra charge.

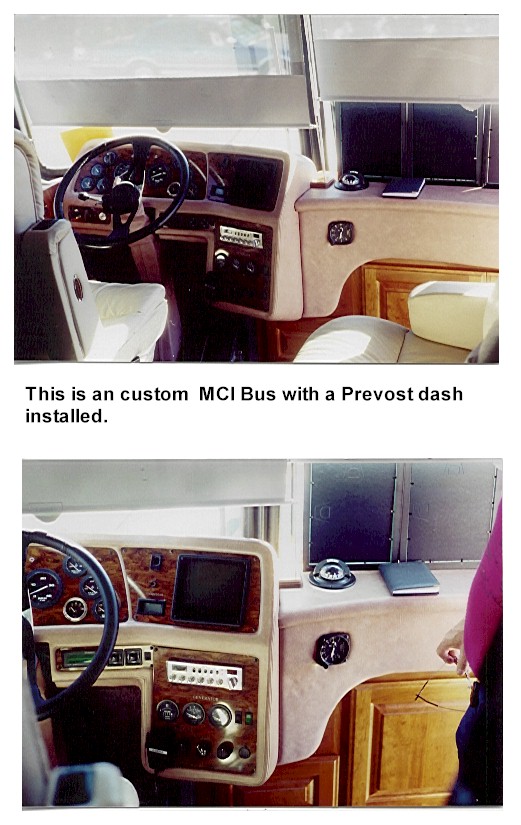

MCI Bus with a Prevost dash installed

Other Ideas

mci with prevost dash.jpg (119649 bytes)

Howard Eberly's MCI Bus with Prevost dash installed by Dick Grasso (909) 374-3229

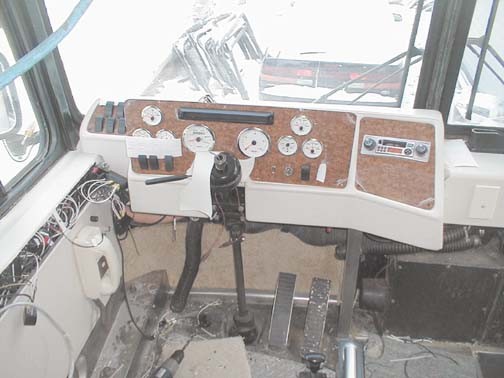

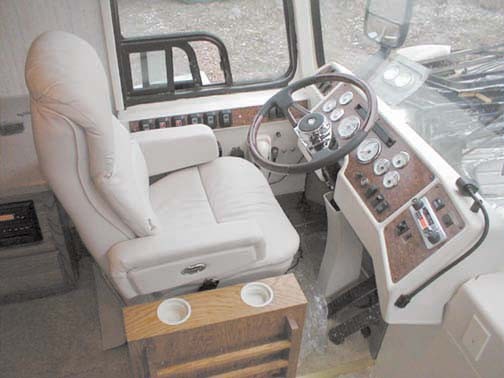

Completed MCI Conversion with CIP 8 & 12 Gauge Dash System

1 installing panel Apr03.jpg (47357 bytes) 2 driver area Apr03.jpg (43116 bytes) Copy of MCI 12 Gauge Picture.gif (121136 bytes)
MCI Dash being installed MCI Dash finished work

8 gauge System

                             MCI 12 gauge

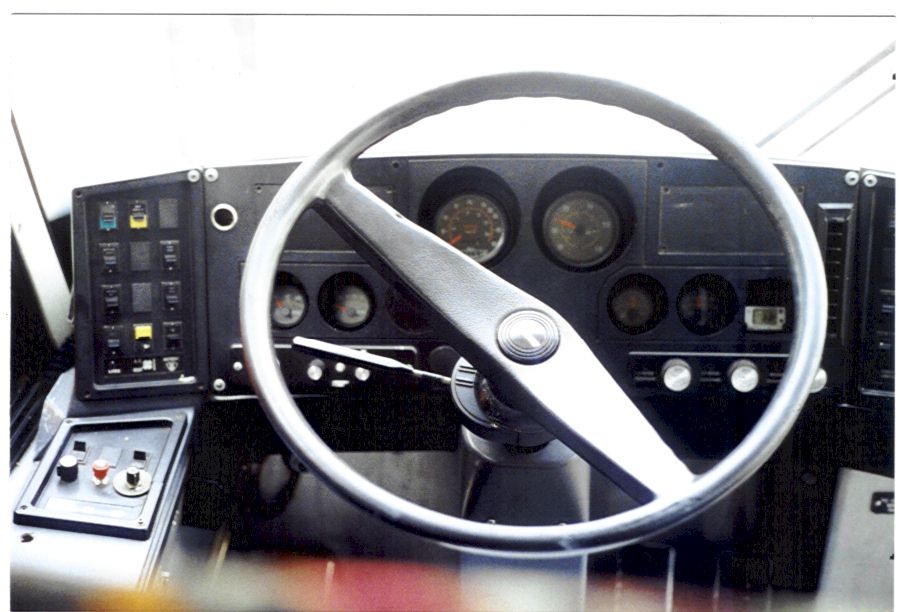

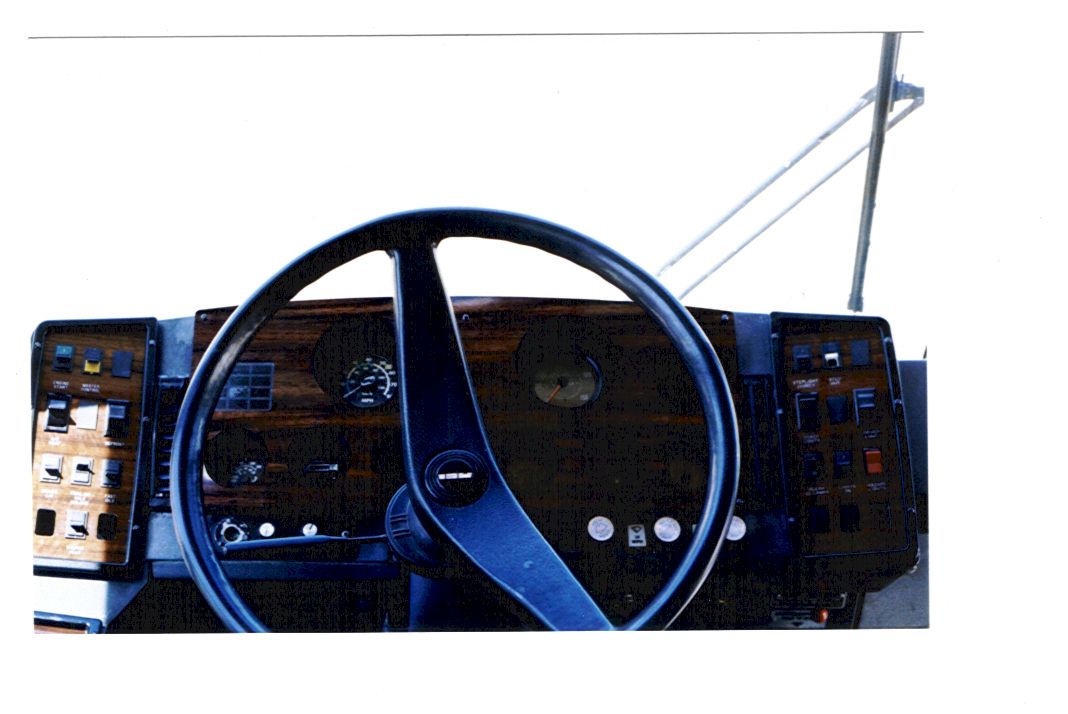

 MCI 102 Dash with new Autumn Teak Panels

Copy of MCI 102 Original.jpg (84288 bytes) Copy of MCI 102 new.jpg (85853 bytes)
Original Dash MCI Dash with new panels
